The CSS Box Model: Everything You Need to Know

Pop quiz: you set a div to width: 300px, add padding: 20px and border: 5px solid black. How wide is the element on screen? If you said 300px, welcome to the club of developers who've been burned by the default box model.

The answer is 350px. That's 300 (content) + 40 (padding left + right) + 10 (border left + right). The CSS box model is one of those foundational concepts that trips people up for years because nobody sits down and really explains the gotchas. Let's fix that.

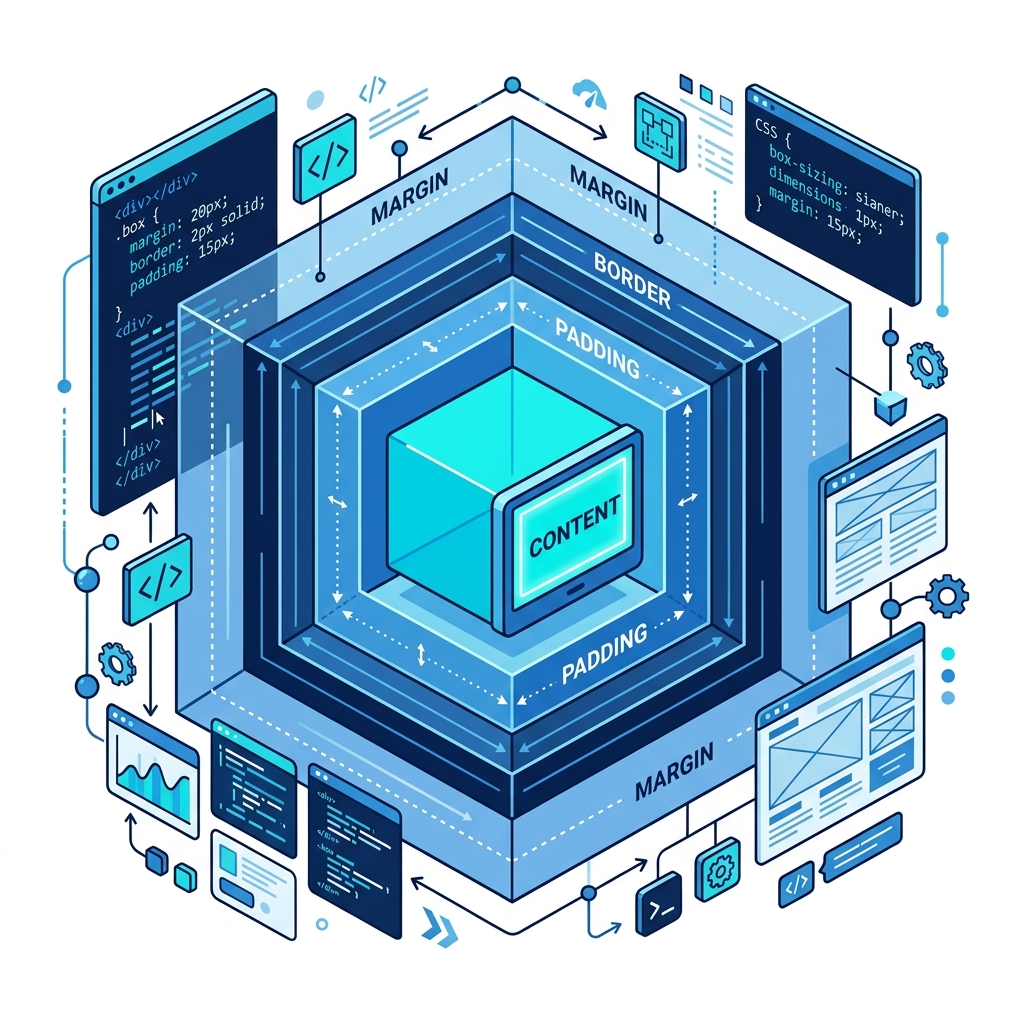

The Four Layers

Every single element on a web page is a rectangular box. Even circles — they're just boxes with border-radius: 50%. Each box has four layers, from inside out:

1. Content — where your text, images, or child elements live
2. Padding — transparent space between the content and the border
3. Border — the visible (or invisible) edge of the element
4. Margin — transparent space outside the border, pushing other elements away

Here's a simple visualization in code:

.box {
  width: 200px;        /* content width */
  height: 100px;       /* content height */
  padding: 20px;       /* space inside the border */
  border: 3px solid #3b82f6;  /* visible edge */
  margin: 16px;        /* space outside the border */
}

The total space this element occupies horizontally: 16 + 3 + 20 + 200 + 20 + 3 + 16 = 278px. The rendered width of the visible box (border edge to border edge) is 246px. The content area where text flows? Just 200px.

Understanding this math is the difference between layouts that "just work" and layouts where you're adjusting pixels for an hour trying to figure out why two elements don't sit side by side.

box-sizing: The Fix Everyone Needs

The default box model (content-box) is mathematically correct but practically annoying. When you say width: 100% and then add padding, the element overflows its parent. That's technically what you asked for, but it's almost never what you wanted.

Enter border-box:

/* The universal fix — put this in every project */
*, *::before, *::after {
  box-sizing: border-box;
}

.box {
  width: 300px;
  padding: 20px;
  border: 5px solid black;
  /* Total visible width: 300px (padding and border included) */
  /* Content area: 300 - 40 - 10 = 250px */
}

With border-box, the width property now includes padding and border. The element is exactly 300px wide, and the content area shrinks to accommodate. This is what you intuitively expect, and it's why every CSS reset in existence includes the universal border-box rule.

Margin Collapsing: The Weird Part

This is the part of the box model that makes developers question reality. Vertical margins collapse. Horizontal margins don't. And the rules for when they collapse are... specific.

Here's what happens:

<div style="margin-bottom: 30px;">First</div>
<div style="margin-top: 20px;">Second</div>

<!-- The gap between them is 30px, NOT 50px -->

When two vertical margins touch, they collapse into a single margin equal to the larger of the two. This isn't a bug — it's by design. It prevents paragraphs from having double spacing between them when you set margin-bottom on all of them.

Margins collapse in three scenarios:

• Adjacent siblings — the bottom margin of one element and the top margin of the next
• Parent and first/last child — if there's no padding, border, or content separating them, the child's margin "escapes" and merges with the parent's
• Empty blocks — an element with no content, padding, or border will have its top and bottom margins collapse into a single margin

The parent-child case is the one that catches people most. You add margin-top: 40px to the first child inside a container, expecting it to push down from the container's top edge. Instead, the margin pushes the entire container down. Infuriating the first time you see it.

How to Prevent Margin Collapsing

Any of these will stop margins from collapsing between parent and child:

/* Option 1: Add padding to the parent */
.parent { padding-top: 1px; }

/* Option 2: Add a border to the parent */
.parent { border-top: 1px solid transparent; }

/* Option 3: Use overflow (my preferred approach) */
.parent { overflow: auto; }

/* Option 4: Use flexbox or grid (most modern approach) */
.parent { display: flex; flex-direction: column; }

/* Option 5: Use the contain property */
.parent { contain: layout; }

In my experience, the cleanest solution is using flexbox or grid on the parent. It eliminates margin collapsing entirely within that context, and you're probably going to use flexbox for layout anyway.

Padding vs. Margin: When to Use Which

This confuses beginners more than it should. Here's my simple rule:

• Padding pushes content inward from the border. It creates space inside the element. Background colors and images extend through the padding area.
• Margin pushes other elements away. It creates space outside the element. Margins are always transparent.

If you want a button with breathing room around the text, use padding. If you want space between two buttons, use margin. If you want a card with internal spacing for its content, padding. Space between cards in a grid? Margin (or better yet, gap).

Outline vs. Border: A Subtle but Important Difference

Outlines look like borders but behave completely differently in the box model.

.element {
  border: 2px solid blue;    /* Takes up space, affects layout */
  outline: 2px solid red;    /* Does NOT take up space, sits on top */
}

Key differences:

• Border is part of the box model. It increases the element's total size (unless you're using border-box, where it reduces content space).
• Outline is painted on top of the element and doesn't affect layout at all. It can even overlap neighboring elements.
• Outlines can't have individual sides (outline-left doesn't exist).
• Outlines can use outline-offset to be drawn away from the border edge — inward or outward.

The main place you'll encounter outlines is focus indicators. Browsers add outline to focused elements for accessibility. Please don't remove them with outline: none without providing an alternative focus style. Keyboard users need to see where they are on the page.

Debugging the Box Model

Every browser's DevTools has a box model diagram. Here's how to use it effectively:

Chrome/Edge: Right-click an element → Inspect → look at the "Computed" tab. You'll see a visual diagram showing the exact pixel values for content, padding, border, and margin. Hover over any section to highlight it on the page.

Quick debugging trick: When a layout isn't behaving, add a temporary border to see what's actually happening:

/* Nuclear option: show every box on the page */
* {
  outline: 1px solid red !important;
}

/* More targeted debugging */
.problem-section * {
  outline: 1px solid rgba(255, 0, 0, 0.3) !important;
}

I use outline instead of border for debugging because outlines don't affect layout. Adding borders changes the element's size, which can mask or create the very problem you're trying to debug.

Practical Gotchas

Percentage Padding Refers to Width

Here's one that surprises almost everyone: padding-top: 50% means 50% of the element's width, not its height. This is actually useful for creating aspect ratio boxes (before aspect-ratio existed), but it trips people up when they try percentage-based vertical padding expecting it to relate to height.

Inline Elements Ignore Vertical Margin and Padding (Sort Of)

You can add margin-top and padding-top to a <span>, but it won't push surrounding lines away. The padding renders visually (you'll see the background extend), but it doesn't affect the layout of surrounding elements. Use display: inline-block if you need inline elements that respect vertical spacing.

Negative Margins Are Valid

.pull-up {
  margin-top: -20px;  /* Pulls element upward, overlapping what's above */
}

Negative margins pull elements in the opposite direction. They're useful for overlapping effects and breaking out of parent padding. They're also a code smell if you're using them to fix layout issues — usually there's a cleaner solution with flexbox or grid.

The box model isn't complicated once you internalize two things: always use border-box, and remember that vertical margins collapse. Everything else is just practice. Open DevTools, inspect some elements, watch the box model diagram update as you change values. Five minutes of hands-on experimentation beats an hour of reading about it.

Including this article. Go open DevTools.
